How GPS and LiDAR Mapping Work Together on Large Projects

Posted on August 4, 2026 by Newnan Surveyor

Big development projects need more than a tape measure and a hunch. GPS and lidar mapping now work as a team on most large sites, and each tool covers a gap the other one leaves open. For developers in Newnan, this pairing means fewer surprises during grading, permitting, and design changes. The result: faster timelines and fewer costly redos.

The Different Roles of GPS and LiDAR in Modern Surveying

GPS tells you where you are. Lidar tells you what’s around you.

GPS uses satellites to pin down exact coordinates on the ground. It’s fast and accurate for single points like property corners or control markers. But GPS alone can’t capture the shape of the land. It won’t show you a slope, a drainage ditch, or a stand of trees.

Lidar fills that gap. It fires thousands of laser pulses per second and builds a 3D picture of everything the beam hits. Trees, buildings, power lines, and ground contours all show up in the data.

Used alone, each tool has blind spots.

GPS gives precise location but no shape.
Lidar gives shape and detail but needs a fixed reference to mean anything.

Put together, you get the exact location and exact form. That combination is what makes large-scale survey work possible in the first place.

How LiDAR Mapping Benefits From Accurate GPS Positioning

Lidar mapping only works if every laser point knows where it sits on the earth. GPS gives it that anchor.

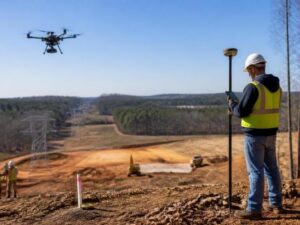

Here’s the simple version. A lidar sensor mounted on a drone, plane, or vehicle collects millions of data points as it moves. Each point needs a real-world coordinate, and that comes from onboard GPS paired with an inertial measurement unit (IMU). Together, GPS and IMU track the sensor’s exact position and angle at every instant.

Without accurate GPS, lidar mapping data would drift. Points would shift out of place, and the final model would show a hill where there’s a flat field, or shave two feet off a real elevation change. That kind of error can throw off drainage plans, cut-and-fill estimates, and flood zone calculations.

With strong GPS positioning, lidar mapping becomes something you can trust for engineering decisions. Every point ties back to a known coordinate system, so the final map lines up with property lines, easements, and existing infrastructure.

Integrating Multiple Data Sources Into One Survey Model

Most large projects don’t rely on lidar and GPS alone. Surveyors often layer in:

Ground-based GPS control points for accuracy checks
Drone or aerial lidar for full-site coverage
Total station data for tight, detailed areas like building corners
Existing utility and easement records

Each source gets tied to the same coordinate system. That’s the part that takes real skill. A single misaligned data set can throw off an entire model, and catching that error late in the process costs time and money.

Once everything lines up, the combined model becomes the single source of truth for the project. Engineers, architects, and contractors all work from the same base data instead of juggling separate maps that don’t quite agree.

Project Types That Benefit Most From Combined Survey Technologies

Not every job needs this level of detail. But for certain project types, combined GPS and lidar mapping saves real money.

Large residential subdivisions. Developers need accurate topography across dozens or hundreds of acres. Lidar covers the ground fast, and GPS keeps every lot’s boundary correct.

Commercial site development. Grading plans, stormwater design, and utility routing all depend on precise elevation data. A few inches of error can mean a redesign.

Highway and infrastructure corridors. Long, narrow project areas cross varied terrain. Lidar captures it all in one pass instead of piecing together dozens of ground surveys.

Sites with heavy tree cover or rough terrain. Lidar can see through gaps in the canopy to map the ground below. Traditional survey crews would need weeks to cover the same area on foot.

Flood plain and drainage studies. Small elevation changes matter here. Combined data gives engineers the resolution they need to model water flow accurately.

Selecting LiDAR Mapping for Large and Complex Survey Areas

So when does a project actually need lidar mapping instead of a standard ground survey?

Size is the first sign. Once a site crosses roughly 20 to 30 acres, ground crews start losing efficiency compared to aerial lidar. Complex terrain is the second sign. Steep slopes, wooded lots, and irregular drainage patterns all favor lidar’s ability to capture dense, detailed elevation data quickly.

Timeline pressure matters too. If a developer needs topographic data fast, lidar mapping can cover hundreds of acres in a single flight. A ground crew covering the same area might take days or weeks.

Before choosing a method, ask these questions:

How large is the site?
How much vegetation or tree cover is present?
What level of elevation accuracy does the project require?
How tight is the project timeline?
Will the data feed into drainage, grading, or flood modeling?

If the answers point to size, complexity, or speed, lidar paired with GPS control is usually the right call.

Frequently Asked Questions

Does lidar mapping replace the need for GPS survey points?

No. Lidar needs GPS control points to anchor its data to real-world coordinates. The two work together, not as substitutes.

How accurate is combined GPS and lidar data?

With proper ground control, accuracy often falls within a few centimeters. Accuracy depends on equipment quality, flight height, and the number of control points used.

Can lidar see through trees?

Yes, to a point. Laser pulses pass through small gaps in the canopy and reflect off the ground below. Dense evergreen cover can reduce how much ground data gets captured.
