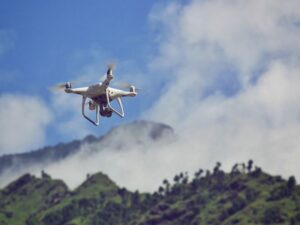

A topographic survey shows the shape and elevation of the land. LiDAR mapping can add much more elevation data to that picture, especially across large or difficult sites. Instead of relying only on individual ground shots, LiDAR can collect a dense point cloud that reveals more of the terrain between measured locations. For developers planning grading, drainage, or site improvements, combining LiDAR with conventional survey methods can provide a more detailed basis for design.

LiDAR Mapping Can Add More Detail to the Picture a Topographic Survey Provides

A traditional topographic survey collects measured points across a property. The surveyor selects locations that help describe slopes, grade breaks, drainage features, structures, and other important conditions. The resulting surface is based on those measurements and professional interpretation.

LiDAR adds a much denser collection of elevation points. Instead of measuring only selected locations from the ground, a LiDAR system can capture large numbers of points across the site. This can provide additional detail between conventional survey points.

That added density can be valuable when terrain changes quickly or when the project covers a large area. Complex grading and drainage projects may benefit from seeing more of the existing surface before design begins. LiDAR does not replace the surveyor’s judgment. It gives the surveyor another source of terrain information to evaluate and use where appropriate.

Dense Point Clouds Help Reveal Subtle Changes Across the Site

The amount of elevation data collected can affect how clearly small terrain features appear. A widely spaced set of measurements may not capture every minor change in grade, while a dense LiDAR point cloud can provide more information about the surface.

These smaller features can influence how water moves and how a site is graded. Examples include:

• Small grade changes across a slope
• Shallow depressions that collect runoff
• Ridges that divide drainage paths
• Natural low points across the property
• Minor breaks in an otherwise consistent slope

Identifying these conditions early can help designers make better decisions about grading and drainage. However, dense data alone does not guarantee an accurate survey. The LiDAR information still needs proper survey control, processing, and verification before it is relied upon for project decisions.

Vegetation Can Make Ground Conditions Hard to Map From the Surface

Vegetation can make topographic work more difficult because trees, brush, and other plants can hide the ground. A visual survey of the surface may show the vegetation clearly while providing little information about the terrain underneath it.

LiDAR can help because some laser pulses can pass through gaps in vegetation and return from lower surfaces. The collected returns can then be classified to distinguish vegetation from potential ground points. This can help create a bare-earth representation of suitable areas beneath some vegetation.

The results depend on the density and type of vegetation, along with the equipment and collection conditions. Very dense vegetation can limit how many laser pulses reach the ground. Field verification remains important, particularly in areas where vegetation makes the ground surface difficult to confirm.

Survey Control and Field Checks Still Matter When LiDAR Data Is Used

LiDAR produces a large amount of data, but raw data is not automatically a finished survey. The information needs to be positioned, processed, classified, and checked against known conditions.

Ground control points can provide known locations and elevations that help tie the LiDAR data to the project’s coordinate and elevation system. Accurate positioning during data collection also affects the quality of the resulting point cloud.

After processing, surveyors can compare selected LiDAR elevations with measurements collected directly on the ground. These checks help identify differences and confirm whether the data meets the project’s required accuracy.

This quality-control process is important because a detailed model can still be wrong if it is not properly referenced or verified. The value of LiDAR comes from combining its dense coverage with sound survey practices.

LiDAR Works Best as Part of a Survey Strategy Matched to the Site

LiDAR is not automatically the best method for every topographic survey. The right approach depends on the size, terrain, vegetation, required accuracy, project scope, and budget.

A large wooded parcel may benefit greatly from LiDAR because collecting dense ground measurements could take significant time. A small, open lot may be better served by conventional ground methods. Some projects may benefit most from using both approaches, with LiDAR providing broad terrain coverage and ground survey methods supplying control and detailed verification.

The surveyor should determine which combination fits the project before data collection begins. Share the site’s conditions, the planned improvements, and the accuracy requirements with the surveyor. That allows the survey team to choose the method that provides useful information without adding technology that the project does not need.

When properly planned and verified, LiDAR can make a topographic survey more detailed and useful on challenging sites. The technology is most valuable when it supports sound survey methods and gives designers a clearer understanding of the ground before construction plans are finalized.

Frequently Asked Questions

Can LiDAR replace a traditional topographic survey?

Not always. LiDAR can provide dense elevation data and broad site coverage, but it still requires proper control, processing, and field verification. Conventional ground surveying may also be needed for boundaries, control points, specific features, and accuracy checks. In many projects, LiDAR and ground methods work best together.

How does LiDAR handle ground covered by trees?

Some LiDAR pulses can pass through gaps in vegetation and return from the ground beneath it. Software can classify the returns to help separate ground points from vegetation. This can support a bare-earth terrain model in areas with suitable vegetation conditions. Dense or thick cover can still limit the amount of usable ground data.

What makes LiDAR data accurate enough to use?

Several factors affect accuracy, including survey control, positioning, equipment, flight or collection planning, data processing, and field verification. Ground control points help reference the data to known locations and elevations. Field checks then provide an independent comparison with actual ground measurements. The required accuracy should be established before the survey begins.

When should a developer choose LiDAR for a topographic survey?

LiDAR can be a strong option for large, steep, rough, or vegetated properties where collecting dense ground measurements would be difficult. It can also help when detailed terrain information is important for grading or drainage design. Smaller and relatively open sites may not require it. A surveyor can recommend the most suitable method based on the project’s needs.

Does adding LiDAR make a survey more expensive?

It can increase the project cost because data collection, equipment, processing, and quality control add work. However, the additional coverage and terrain detail may provide value on large or difficult sites. For a simple property, the extra expense may not be necessary. Comparing the project’s accuracy needs and site conditions with the cost helps determine whether LiDAR is worthwhile.
